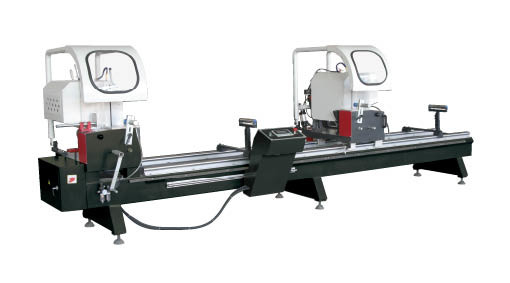

| Function: | Double Mitre Cut Sawing Machine | Rotating Rate: | 2800r/min |
|---|---|---|---|
| Blade Size: | D=450mm | Cutting Scale: | 100x200mm |
| Cutting Length: | 400-3700mm | Cutting Angle: | 45, -45, 90 Degree |
| Input Power: | 3.55Kw | Product: | Aluminum Window Machine Digital Display Double Mitre Cut Sawing Machine |
| Highlight: | aluminum window making machine,aluminium profile cutting machine |
||
• For cutting Aluminum profile.
• With digital display for showing exacting cutting position. Friendly using.
• The feeding system adopts imported linear guide pair, with high accuracy and stability.
• Auto 67.5°,45°and 90°cutting change
• Imported linear guiding pair ensured steady processing accuracy.
• Saw blade rotates smoothly due to high accuracy spindle.
• Hydraulic feeding systems ensure precise and stable feeding.
• Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.
• Carbide saw blade is of accurate processing and high efficiency.
• Two heads can work together or single, when together work, one time can cut off the required length and angle
| Voltage | 380V/50HZ | |
| Power | 3.55KW | |
| Working parameters | Saw size | D=450mm d=30mm |
| Rotation rate | 2800r/min | |
| Air pressure | 0.5-0.8MPa | |
| Cutting scale | HxWxL (mm) | 100x200x(400-3700) |
1, Used for cutting the profile of aluminum door and windows,curtain wall and corner connector;
2, Saw blade rotate smoothly due to high accuracy main spindle;
3, The interface adopt the color touching display,which is briefness and intuitionistic;
4, The feeding system adopt the imported linear guide pair,with highaccuracy and stability;
5, 45°and 90°cutting is available;
